Supported Vehicle Models:
ZN8 GR86
Body Type: 3BA-ZN8
Engine Type: FA24
Model Year: R3.10～（From October 2021 onwards）
ZD8 BRZ 2.4
Body Type: 3BA-ZD8
Engine Type: FA24
Model Year: R3.7～（From July 2021 onwards）
Special Notes:
Applicable to both manual transmission (MT) and automatic transmission (AT) vehicles.
Common for Cup Car Basic.
Certified parts for TGR GR86/BRZ Cup (PROFESSIONAL Series).
Compatible with the installation of CUSCO Rear Stabilizer.
Compatible with the installation of CUSCO Differential Cover.
Compatible with the installation of TRUST Large Capacity Differential Cover.
Compatible with the installation of CUSCO Differential Cooler.
Remarks:

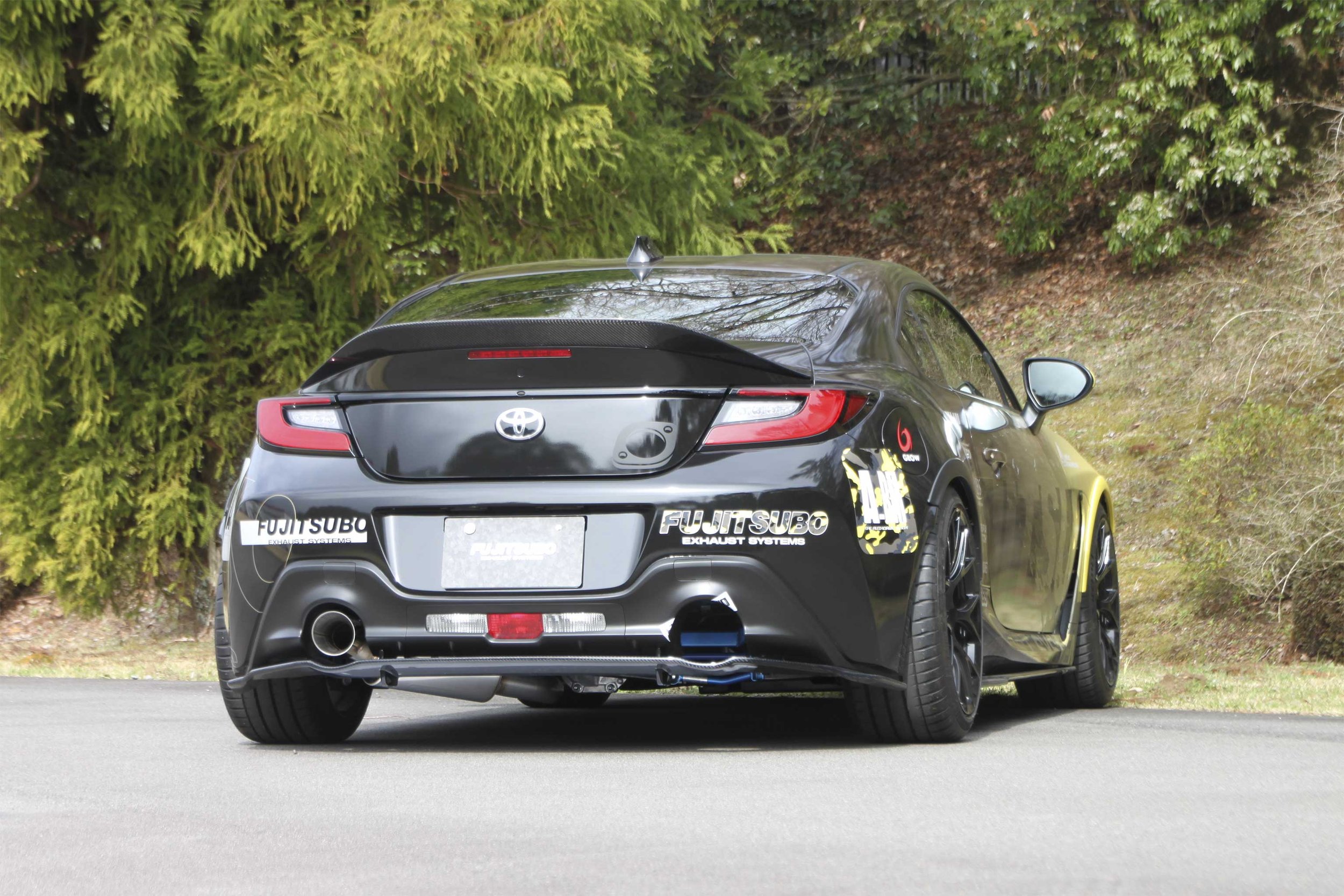

Left-side single exhaust.
Speed limiter operates during measurement in 4th gear.
Tailtip Style:
φ101.6 Slash (12 degrees)
Pipe Diameter:
φ70.0
Fitting Parts List:
• Slit Clamp Fitting Kit SLIT-HC70×1
• ZN8 Exclusive Fitting (for A-RM 260-23214)×1
• M6×18mm Trima Sem Screw×2
Additional Parts (Optional at an Additional Cost):

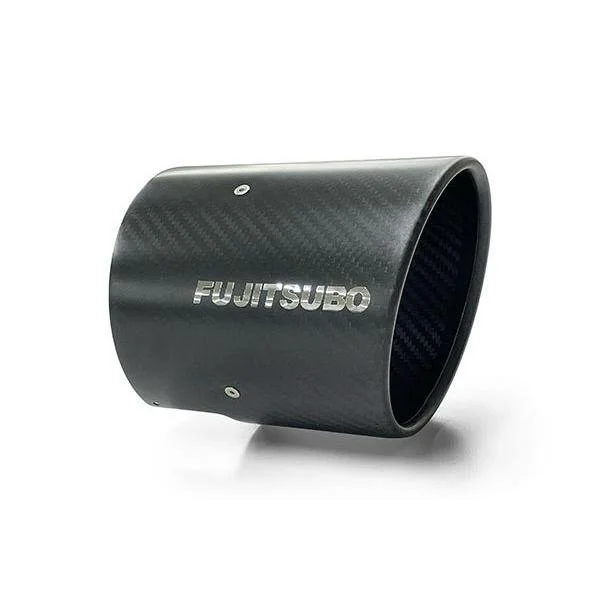

EXH+ CARBON FINISHER φ118
